Creating a DR mode-compatible tunnel on SN VPN Client Exclusive

IMPORTANT
To configure SN VPN Client Exclusive, you must run it with administrator privileges on the client workstation (right-click on the Stormshield VPN Client Exclusive icon > Run as administrator).

Running and enabling SN VPN Client Exclusive

  1. On the Windows desktop on the client workstation, run Stormshield VPN Client Exclusive.
  2. The first time it is launched, enter the Stormshield VPN Client Exclusive license number for the user concerned.

Allowing the display of additional parameters

  1. Click on Tools > Options in the general menu.
  2. In the General tab: select Show more parameters and confirm by clicking on OK.

Creating a new gateway

In the left column in Stormshield VPN Client Exclusive:

  1. Right-click on IKEv2 and select New IKE Auth.
    A gateway, named Ikev2Gateway by default, is created.
  2. It can be renamed by right-clicking on this gateway and selecting Rename.

Adapting the gateway's parameters to make it compatible with DR mode

Select the gateway created earlier.

Authentication tab

  1. In the Remote Gateway field, enter the IP address or FQDN of the firewall with which the DR mode-compatible tunnel will be set up.
  2. In the Authentication section, select Certificate.
    You will be automatically directed to the Certificate tab.
  3. Click on Import a certificate.
  4. Select P12 format and click on Next.
  5. Select the identity of the mobile client that was exported earlier in P12 format on the firewall in question.
  6. Enter the password that protects this identity.
  7. Confirm by clicking on OK.
  8. Click on the Authentication tab again.
  9. In the Cryptography section, select the values that match those selected for the DR encryption profile on the firewall in question:
    • Encryption: AES GCM 256 or AES CTR 256,
    • Integrity: SHA2 256,
    • Key group: DH28 (BrainpoolP 256r1) or DH19 (ECP 256).

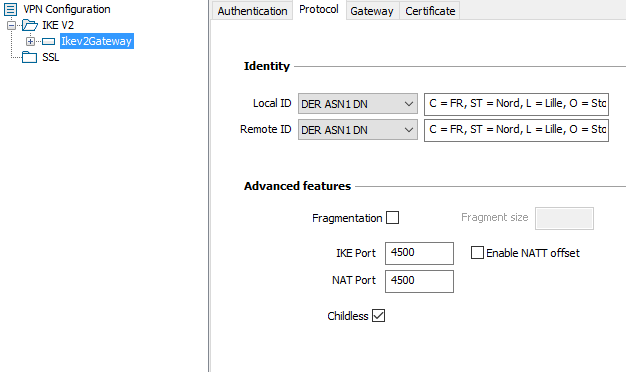

Protocol tab

  1. In the Identity section, in the Remote ID field: select DER ASN1 DN and indicate the subject of the gateway certificate in SNS version 4.3 Transition DR (C = FR, ST = Nord, L = Lille, O = Stormshield, OU = Doc, CN = DR-Compliant.stormshield.eu in this example).
  2. In the Advanced properties section:
    1. Set the IKE Port to 4500,
    2. Select the Childless checkbox.

Gateway tab

You can leave the default settings.

NOTE
For the lifetime setting, it may be helpful to set a value lower than the one configured on the gateway (firewall in DR mode) so that SN VPN Client Exclusive initiates renegotiations.

More parameters tab

  1. If the parameter "Method14_RSASSA_PKCS1" is present, delete it.
  2. Add the custom parameters with the following values:

Name Value
nonce_size 16
NoNATTNegotiation true
sha2_in_cert_req true
allow_server_and_client_auth true
allow_server_extra_keyusage true

Backing up the configuration

Click on Configuration > Save in the SN VPN Client Exclusive general menu to confirm and save this configuration.

Creating the tunnel to the DR mode-compatible gateway

  1. Right-click on the gateway that was created earlier (FW_DR in this example) and selected New Child SA.
    A tunnel, named Ikev2Tunnel by default, is created.
  2. It can be renamed by right-clicking on this tunnel and selecting Rename.
    The name chosen in this example is Tunnel_DR.

Adapting the tunnel's parameters to make it compatible with DR mode

Select the tunnel created earlier.

Child SA tab

  1. Select the checkbox Request configuration from the gateway.
  2. In the Cryptography section:
    • In the Encryption field, select the same value as the one configured for the gateway that was created earlier (FW_DR in this example): AES GCM 256 or AES CTR 256.
    • Select auto for the Integrity field.
    • In the Diffie-Hellman field, select the same value as the one configured for the gateway that was created earlier (FW_DR in this example): DH28 (BrainpoolP 256r1) or DH19 (ECP 256).
    • Select auto for the Extended sequence number field.
  3. In the Lifetime section, select 1800 (seconds) for the Child SA Lifetime field.

Backing up the configuration

Click on Configuration > Save in the SN VPN Client Exclusive general menu to confirm and save this configuration.
