Creating VLANs

VLANs are first created outside bridges before being connected to a bridge specifically created to allow them to pass through the tunnel.

On each firewall that is part of the GRETAP tunnel, in Configuration > Network > Interfaces:

Creating the incoming VLAN 10

In Configuration > Network > Interfaces:

  1. Click on Add.
  2. Select VLAN > No parent interface.
  3. Go to the General configuration tab.
  4. In the Status section, put the cursor on ON.
  5. In General settings > Name field, name the VLAN (vlan_10_1 in the example).
  6. In General settings > Parent interface field, select the interface that hosts the incoming VLAN (in interface in the example).
  7. In General settings > ID field, select the 802.1q identifier associated with the VLAN (10 in the example).
  8. In General settings > This interface is field, select Internal (protected).
  9. In Address range: leave the Address range field as Dynamic / Static and the IPv4 address field as Dynamic IP (obtained by DHCP).
  10. Click on Apply.

Creating the outgoing VLAN 10

In Configuration > Network > Interfaces:

  1. Click on Add.
  2. Select VLAN > No parent interface.
  3. Go to the General configuration tab.
  4. In the Status section, put the cursor on ON.
  5. In General settings > Name field, name the VLAN (vlan_10_2 in the example).
  6. In General settings > Parent interface field, select the interface that hosts the outgoing VLAN (Gretap_VLAN interface in the example).
  7. In General settings > ID field, select the 802.1q identifier associated with the VLAN (10 in the example).
  8. In General settings > This interface is field, select Internal (protected).
  9. In Address range: leave the Address range field as Dynamic / Static and the IPv4 address field as Dynamic IP (obtained by DHCP).
  10. Click on Apply.

Connecting both VLANs to a dedicated bridge

In Configuration > Network > Interfaces:

  1. Select vlan_10_1 and vlan_10_2 from the list of interfaces.
  2. Click on Add.
  3. Select Bridge > With vlan_10_1, vlan_10_2.
  4. Name: enter the name of the bridge (BridgeVlan10 in the example).
  5. IPv4 address: leave it as Dynamic IP (obtained by DHCP).
  6. Click on Apply.

Creating VLAN 20

Following the method described earlier, create vlan_20_1 and vlan_20_2 with the ID 20, connected respectively to the in and gretap_VLAN interfaces, then placed under a new dedicated bridge named BridgeVlan20 in the example.

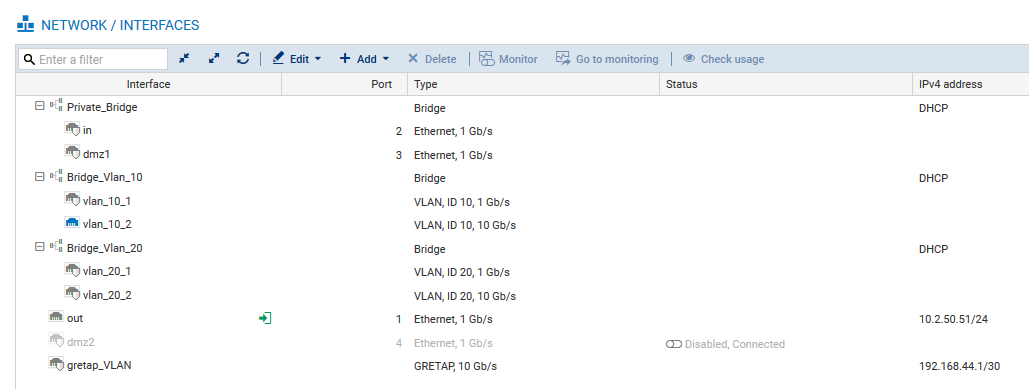

The bridges and their connected VLANs will then appear in the list of interfaces:

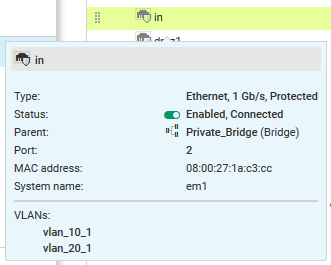

By scrolling over the in interface, you will be able to check whether VLANs vlan_10_1 and vlan_20_1 have been attached to it:

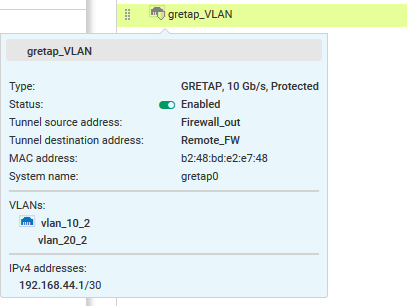

Likewise for the interface gretap_VLAN and VLANs vlan_10_2 and vlan_20_2:
